无感刷新Token

关于Token

token刷新是前端安全中必要的一部分，本文从后端到前端整个流程介绍如何实现无感刷新token。

一、实现思路

通过长短token实现：短token用来请求应用数据，长token用于获取新的短token（长短指的是过期时间）

二、后端设计

• 后端存有两个字段，分别保存长短token，并且每一段时间更新他们
• 短token过期，返回 returncode:104；长token过期，返回 returncode: 108；请求成功返回returncode: 0；
• 请求头中pass用来接收客户端长token，请求头中authorization用来接收客户端短token

1. 搭建Node服务器

安装Koa

npm init
npm i koa

新建index.js

const Koa = require('koa')
const app = new Koa();

app.use(async(ctx,next)=>{
    ctx.body = "这是一个应用中间件";
    await next()
})

app.listen(4000,() => {
    console.log('server is listening on port 4000')
})

安装nodemon并配置启动命令

npm i nodemon -g

// package.json
"dev":"nodemon index.js",

2. 使用路由中间件

安装

npm i koa-router -S

新建routes/index.js

const router = require("koa-router")();
let accessToken = "init_s_token"; //短token
let refreshToken = "init_l_token"; //长token

/* 5s刷新一次短token */
setInterval(() => {
  accessToken = "s_tk" + Math.random();
}, 5000);

/* 一小时刷新一次长token */
setInterval(() => {
  refreshToken = "l_tk" + Math.random();
}, 600000);

/* 登录接口获取长短token */
router.get("/login", async (ctx) => {
  ctx.body = {
    returncode: 0,
    accessToken,
    refreshToken,
  };
});

/* 获取短token */
router.get("/refresh", async (ctx) => {
  //接收的请求头字段都是小写的
  let { pass } = ctx.headers;
  if (pass !== refreshToken) {
    ctx.body = {
      returncode: 108,
      info: "长token过期，重新登录",
    };
  } else {
    ctx.body = {
      returncode: 0,
      accessToken,
    };
  }
});

/* 获取应用数据1 */
router.get("/getData", async (ctx) => {
  let { authorization } = ctx.headers;
  if (authorization !== accessToken) {
    ctx.body = {
      returncode: 104,
      info: "token过期",
    };
  } else {
    ctx.body = {
      code: 200,
      returncode: 0,
      data: { id: Math.random() },
    };
  }
});

/* 获取应用数据2 */
router.get("/getData2", async (ctx) => {
  let { authorization } = ctx.headers;
  if (authorization !== accessToken) {
    ctx.body = {
      returncode: 104,
      info: "token过期",
    };
  } else {
    ctx.body = {
      code: 200,
      returncode: 0,
      data: { id: Math.random() },
    };
  }
});

module.exports = router;

修改index.js

//删除
app.use(async(ctx,next)=>{
    ctx.body = "这是一个应用中间件";
    await next()
})
//新增
const index = require('./routes/index')
app.use(index.routes(),index.allowedMethods())

3. 跨域处理

安装

npm i koa2-cors

修改index.js

// 新增
const cors = require('koa2-cors');

app.use(cors());

三、前端设计

1. 定义常量

新建 config/constant.js

/* localStorage存储字段 */
export const ACCESS_TOKEN = "s_tk"; //短token
export const REFRESH_TOKEN = "l_tk"; //长token、
/* HTTP请求头字段 */
export const AUTH = "Authorization"; //存放短token
export const PASS = "PASS"; //存放长token

新建 config/returnCodeMap.js

// 在其它客户端被登录
export const CODE_LOGGED_OTHER = 106;
// 重新登陆
export const CODE_RELOGIN = 108;
// token过期
export const CODE_TOKEN_EXPIRED = 104;
//接口请求成功
export const CODE_SUCCESS = 0;

2.封装服务

关键点：将token过期的请求，借助Promise将请求存进数组中，让这个Promise一直处于pending状态（即不调用resolve），当获取到新的短token时，再逐个重新请求

如果不保持promise链，就会当成一个新的请求，页面内容不会更新

安装axios

npm i axios -S

新建 service/index.js

import axios from "axios";
import { refreshAccessToken, addSubscriber } from "./refresh";
import { clearAuthAndRedirect } from "./clear";
import {
  CODE_LOGGED_OTHER,
  CODE_RELOGIN,
  CODE_TOKEN_EXPIRED,
  CODE_SUCCESS,
} from "../config/returnCodeMap";
import { ACCESS_TOKEN, AUTH } from "../config/constant";

const service = axios.create({
  baseURL: "//127.0.0.1:4000",
  timeout: 30000,
});

service.interceptors.request.use(
  (config) => {
    let { headers } = config;
    const s_tk = localStorage.getItem(ACCESS_TOKEN);
    s_tk &&
      Object.assign(headers, {
        [AUTH]: s_tk,
      });
    return config;
  },
  (error) => {
    return Promise.reject(error);
  }
);

service.interceptors.response.use(
  (response) => {
    let { config, data } = response;
    //retry:第一次请求过期，接口调用refreshAccessToken，第二次重新请求，还是过期则reject出去
    let { retry } = config;
    /* 延续Promise链 */
    return new Promise((resolve, reject) => {
      if (data["returncode"] !== CODE_SUCCESS) {
        if ([CODE_LOGGED_OTHER, CODE_RELOGIN].includes(data.returncode)) {
          clearAuthAndRedirect();
        } else if (data["returncode"] === CODE_TOKEN_EXPIRED && !retry) {
          config.retry = true;
          addSubscriber(() => resolve(service(config)));
          refreshAccessToken();
        } else {
          return reject(data);
        }
      } else {
        resolve(data);
      }
    });
  },
  (error) => {
    return Promise.reject(error);
  }
);

export default service;

新建 service/refresh.js

import service from "./index";
import { ACCESS_TOKEN, REFRESH_TOKEN, PASS } from "../config/constant";
import { clearAuthAndRedirect } from "./clear";

let subscribers = [];
let pending = false; //同时请求多个过期链接，保证只请求一次获取短token

export const addSubscriber = (request) => {
  subscribers.push(request);
};

export const retryRequest = () => {
  subscribers.forEach((request) => request());
  subscribers = [];
};

export const refreshAccessToken = async () => {
  if (!pending) {
    try {
      pending = true;
      const l_tk = localStorage.getItem(REFRESH_TOKEN);
      if (l_tk) {
        /* 重新获取短token */
        const { accessToken } = await service.get(
          "/refresh",
          Object.assign({}, { headers: { [PASS]: l_tk } })
        );
        localStorage.setItem(ACCESS_TOKEN, accessToken);
        retryRequest();
      }
      return;
    } catch (e) {
      clearAuthAndRedirect();
      return;
    } finally {
      pending = false;
    }
  }
};

新建 service/clear.js

import {ACCESS_TOKEN} from '../config/constant'

/* 清除长短token，并定位到登录页（在项目中使用路由跳转） */
export const clearAuthAndRedirect = () =>{
    localStorage.removeItem(ACCESS_TOKEN)
    window.location.href = '/login'
}

3.使用

修改App.vue

<template>
  <p>{{ data1 }}</p>
  <p>{{ data2 }}</p>
  <button @click="getData">获取数据</button>
  <button @click="getToken">登录</button>
</template>

<script setup>
import service from './service/index';
import { ACCESS_TOKEN, REFRESH_TOKEN } from './config/constant';
import { onMounted, ref } from 'vue';

const data1 = ref('')
const data2 = ref('')

const getData = () => {
  service.get('/getData').then((res) => {
    data1.value = res.data.id
  })
  service.get('/getData2').then((res) => {
    data2.value = res.data.id
  })
}
const getToken = () => {
  service.get('/login').then((res) => {
    //存储长token
    localStorage.setItem(REFRESH_TOKEN, res.refreshToken);
    //存储短token
    localStorage.setItem(ACCESS_TOKEN, res.accessToken);
  });
};

</script>

<style scoped></style>

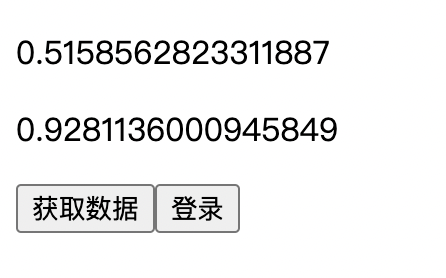

效果图
